KEY TERMINAL INFORMATION

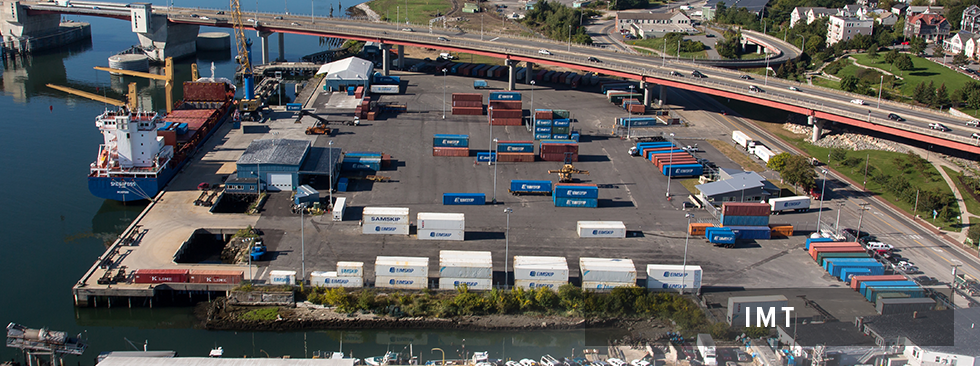

International Marine Terminal



Facility and Container Logistics

  • 785 ft of wharf frontage

  • 1000 PSF concrete wharf

  • Container storage capacity (40 foot containers)

    • Stacked 1 high: 219 containers (438 TEUs)

    • Stacked 2 high: 438 containers (876 TEUs)

    • Stacked 3 high: 657 containers (1,314 TEUs)

    • Stacked 4 high: 876 containers (1752 TEUs)

  • Open storage for project cargo

  • Transload Warehouse

  • Additional capacity provided upon request

  • 24 hour security

  • 24 hour truck access

  • MTSA Secure Facility

  • C-TPAT Certification # 45459543

  • Wharf Height 20 feet above MLLW

  • Efficient handling of project, dimensional and heavy lift cargoes between vessels and inland transportation modes

  • Container yard and pier 9.75 acres

  • 6 Acres developable for Cold Storage

  • 7.5 Acres drop-and-pick yard

  • 3.75 Acres Rail Use, including intermodal ramp

  • Plugs for 170 Refrigerated Containers



Equipment

  • 2 - 124 metric ton capacity LHM 420

  • 4 - Reach Stackers

  • 1 Rail Packer

  • Yard Trucks and Bomb Carts

  • Trackmobile

Harbor Features (US Army Corps dims)

  • Federal navigation channel water depth of 35 feet

  • Water depth of 32 feet MLLW at berth

  • No minimum air draft



Tides and Climate

  • Mean tidal range of 10 feet

  • River current velocities of +/- 1 knot

  • Ice-free harbor


Light Load

  • 35,000 lb container

  • 17,600 lb spreader bar

  • 7400 lb hook and block

  • Operates at 120 ft radius (60,000 lb load)



Heavy Load

  • 67,000 lb container

  • 17,600 lb spreader bar

  • 7400 lb hook and block

  • Operates at 88 ft radius (92,000 lb load)
